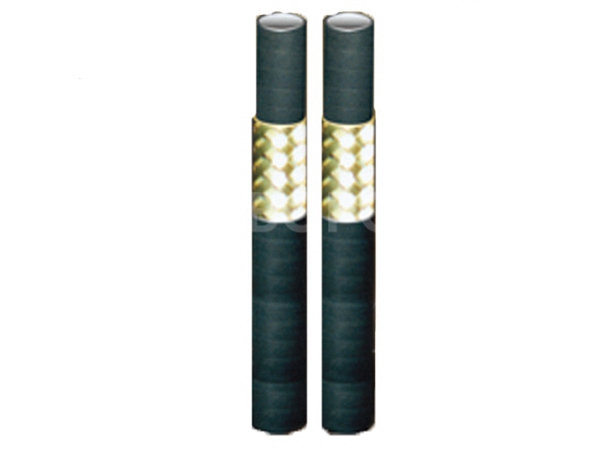

EN857-1SC high pressure steel wire braided rubber hose

  • EN857-1SC high pressure steel wire braided rubber hose
  • EN857-1SC high pressure steel wire braided rubber hose
  • EN857-1SC high pressure steel wire braided rubber hose
  • EN857-1SC high pressure steel wire braided rubber hose
  • EN857-1SC high pressure steel wire braided rubber hose
EN857-1SC high pressure steel wire braided rubber hose EN857-1SC high pressure steel wire braided rubber hose EN857-1SC high pressure steel wire braided rubber hose

EN857-1SC high pressure steel wire braided rubber hose

  • Construction:This hose is composed of an inner tube of oil synthetic rubber,a single wire braided reinforcement,and an oil an weather resistant synthetic rubber cover.
  • Applications: It is suitable to carry hydraulic fluids,such as hydraulic oil,fuel oil,lubricants,emulsion,glycol and water,etc.
  • Working Temperature: from-40℃ up to +100℃
  • Executive standard:GB/T10544-06,DIN20023,SAE100R9~13
  • Features:The hose is made of special synthetic rubber and has excellent oil resistance, heat resistance and aging resistance.
  • INQUIRY   EMAIL

Size Size I.D W.D O.D W.P P.P B.P Min B.R W.T
mm Inch Min Max Min Max Max Mpa Psi Bar Mpa Psi Bar Mpa Psi Bar Inch mm Kg/m
6.3 1/4 6.1 6.9 9.6 10.8 13.5 22.5 3260 225 45 6525 450 90 13050 900 2.95 75 0.13
8 5/16 7.7 8.5 10.9 12.1 14.5 21.5 3120 215 43 6235 430 86 12470 860 3.35 85 0.15
10 3/8 9.3 10.1 12.7 14.5 16.9 18 2610 180 36 5220 360 72 10440 720 3.54 90 0.19
12.5 1/2 12.3 13.5 15.9 18.1 20.4 16 2320 160 32 4640 320 64 9280 640 5.12 130 0.23
16 5/8 15.5 16.7 19.8 21 23 13 1885 130 26 3770 260 52 7540 520 5.91 150 0.29
19 3/4 18.6 19.8 23.2 24.4 26.7 10.5 1520 105 21 3045 210 42 6090 420 7.09 180 0.34
25 1 25 26.4 30.7 31.9 34.9 8.8 1280 88 17.6 2550 176 35.2 5100 352 9.06 230 0.49

Construction: It is mainly composed of a liquid-resistant inner rubber layer, a middle rubber layer, a 2 or 4 or 6-layer steel wire wound reinforcing layer and an outer rubber layer. The inner rubber layer has the function of subjecting the conveying medium to pressure and protecting the steel wire from erosion, and the outer rubber layer The protective wire is not damaged, and the steel wire (φ0.3--2.0 reinforced steel wire) layer is a reinforcing effect of the skeleton material.

Applications: High-pressure steel wire reinforced hydraulic hose is mainly used for mine hydraulic support and oil field exploitation. It is suitable for engineering construction, lifting transportation, metallurgical forging, mining equipment, ships, injection molding machinery, agricultural machinery, various machine tools, and mechanized and automated hydraulic systems of various industrial sectors. a petroleum-based (such as mineral oil, soluble oil, hydraulic oil, fuel oil, lubricating oil) and a water-based liquid (such as emulsion, oil-water emulsion, water), etc., and a liquid having a certain pressure (higher pressure) and temperature For transmission, the maximum working pressure can reach 70-100MPa.

Working Temperature: from-40℃ up to +100℃

Features:
1. The hose is made of special synthetic rubber and has excellent oil resistance, heat resistance and aging resistance.
2. The hose has high pressure and excellent pulse performance.
3. The tube body is tightly combined, soft to use, and small in deformation under pressure.
4. The hose has excellent resistance to bending and fatigue.
5. The wire-wound hose of our factory is generally 20 meters long and can be made within 60 meters according to requirements.
