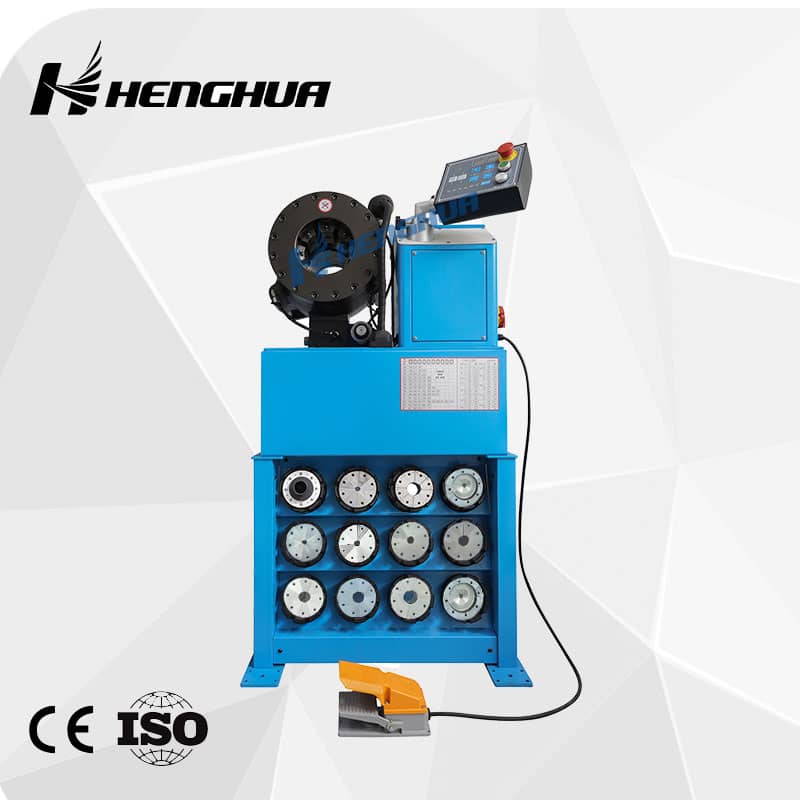

HF32D Hydraulic Hose Crimper Hydraulic Hose Crimping Machine

  • HF32D Hydraulic Hose Crimper Hydraulic Hose Crimping Machine
  • HF32D Hydraulic Hose Crimper Hydraulic Hose Crimping Machine
  • HF32D Hydraulic Hose Crimper Hydraulic Hose Crimping Machine
  • HF32D Hydraulic Hose Crimper Hydraulic Hose Crimping Machine
  • HF32D Hydraulic Hose Crimper Hydraulic Hose Crimping Machine
HF32D Hydraulic Hose Crimper Hydraulic Hose Crimping Machine HF32D Hydraulic Hose Crimper Hydraulic Hose Crimping Machine HF32D Hydraulic Hose Crimper Hydraulic Hose Crimping Machine

HF32D Hydraulic Hose Crimper Hydraulic Hose Crimping Machine

  • Max hose size: 2"6S
  • Swaging range(mm): Φ 6-87
  • Master die shoe length(mm): 85
  • Standard voltage: 380V/50Hz
  • Optional voltage &motor: 220V/2.2kW
  • The HF32D Hydraulic Hose Crimper supports hoses up to 2" 6S. This compact and efficient machine is perfect for precise crimping in industries like engineering and agriculture. Maximize productivity—contact us today to get yours!
  • INQUIRY   EMAIL
HF32D Hydraulic Hose Crimper
HF32D Hydraulic Hose Crimper

Model
HF32A
HF32B
HF32C
HF32D
TECHNICAL DATA
ES
ES
ES
ES
Max hose size
2"6S
2"6S
2"6S
2"6S
Swaging range(mm)
Φ 6-87
Φ 6-87
Φ 6-87
Φ 6-87
Master die shoe length(mm)
85
85
85
85
Standard voltage
380V/50Hz
380V/50Hz
380V/50Hz
380V/50Hz
Motor power
4kW
4kW
4kW
4kW
Optional voltage &motor
220V/2.2kW
220V/2.2kW
220V/2.2kW
220V/2.2kW
Pump(l/min)
19L
19L
19L
19L
Number of swagings/hour
1000
1000
1000
1000
Noise level (dB)
70
70
70
70
Max opening(mm)
Φ+34mm
Φ+34mm
Φ+34mm
Φ+34mm
Crimping force(kN)
5260
5260
5260
5260
Electric limit switch
include
include
include
include
Electronic control
include
include
include
include
Electric pedal
include
include
include
include
Manual change
include
include
include
include
Dimensions LxWxH(mm)
800x650x1320
800x650x1320
685x530x1320
650x500x1300
Weight without oil
350Kg
350Kg
350Kg
350Kg
Dispenser
Optional
Optional
Optional
Optional
Quick change
Optional
Optional
Optional
Optional
Longer
Optional
Optional
Optional
Optional
Special dies
Optional
Optional
Optional
Optional

D 10 13 16 19 22 26 30 34 39 45 51 54 63 67 74 78
L 55 55 55 55 55 55 75 75 75 90 90 90 100 100 110 110

Main Feature:
1.Microcomputer Control System: Enjoy seamless operation with a user-friendly interface that supports jog, semi-automatic, and fully automatic modes, along with foot pedal and delay functions.

2.Extended Mold Design: Our machines come equipped with elongated molds, ensuring that all national standard fittings are crimped accurately in a single operation.

3.Quick Mold Change System: Each crimping machine is designed with a quick mold change feature and a dedicated mold cabinet, streamlining your workflow and enhancing productivity.

4.Hydraulic System Precision: Utilizing a threaded cartridge valve control system, our hydraulic systems provide high precision with slow oil temperature rise, ensuring reliable operation.

5.Intelligent Touch Screen Model: In addition to all the advantages of the HENGHUA microcomputer-controlled models, our HF32S features an intelligent touch screen interface for effortless operation.

6.Intelligent Touch Screen Control: Equipped with Siemens PLC control, this model offers size compensation capabilities for precise crimping across all dimensions.

7.User-Friendly Modes: Choose between simple and professional modes, allowing you to easily store crimping data for quick access during future operations, eliminating the need for recalculating dimensions.

8.Exceptional Crimping Pressure and Capacity: Our machines provide outstanding crimping pressure and expansion capacity, ensuring they meet your heavy-duty requirements.

9.Reliable After-Sales Service: Enjoy peace of mind with our one-year remote warranty service, ensuring you have support when you need it most.
