Four Column Hydraulic Press Machine

Nominal Force:400 KN – 20,000 KN
Slider Stroke:600 mm – 1400 mm
Max. Opening Height:900 mm – 1600 mm
Worktable Size – L×R:460×460 mm – 2000×1800 mm
Motor Power:5.5 kW – 90 kW
INQUIRY EMAIL

Product Overview

The HY32 Series Four-Column Hydraulic Press is a three-beam four-column structural press designed with computer-optimized architecture. It combines simplicity, economy, and high practicality, making it ideal for a wide range of metal and non-metal forming processes, including stamping, bending, flanging, and deep drawing.

With a tonnage range from 40T to 2000T, this series meets diverse production requirements from small workshops to large industrial manufacturing lines.

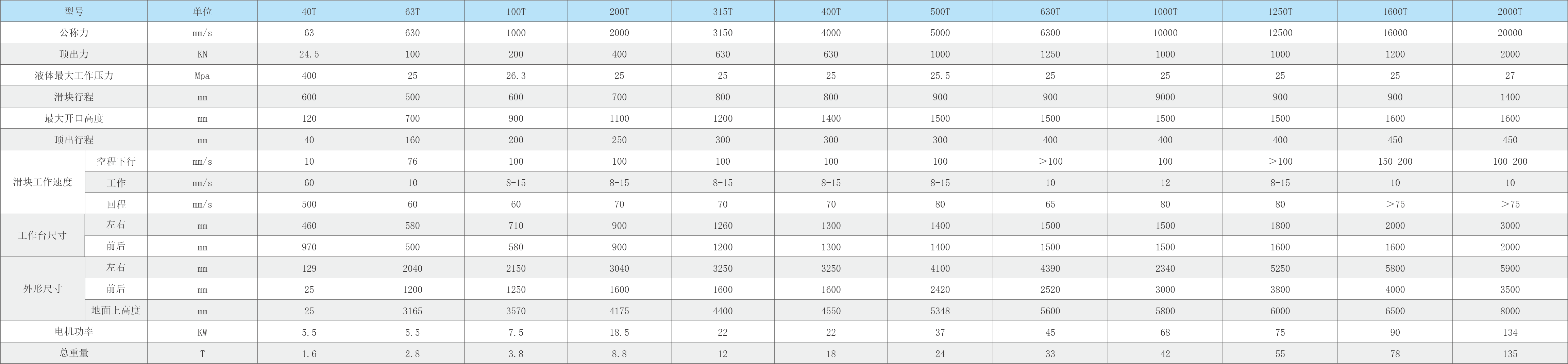

Key Technical Parameters (Partial List)

Standard Features

Three-beam four-column structure – computer-optimized for stability and durability
Cartridge valve integrated hydraulic system – reliable, long service life, reduced hydraulic shock
Independent electrical control system – easy operation and maintenance
Push-button centralized control – with adjustment and single-cycle operation modes
Two forming processes – fixed stroke or fixed pressure, with pressure holding delay
Adjustable working pressure and stroke – within allowable range for different processes
